Issue:
Unclear Mounting Instruction or if GC2 does not fit properly on Elevated Platform.
Reason:
Proper seating of GC2 is required for device to stay on Elevated Platform correctly.
Resolution:
Use the following guide to ensure GC2 is properly seated.

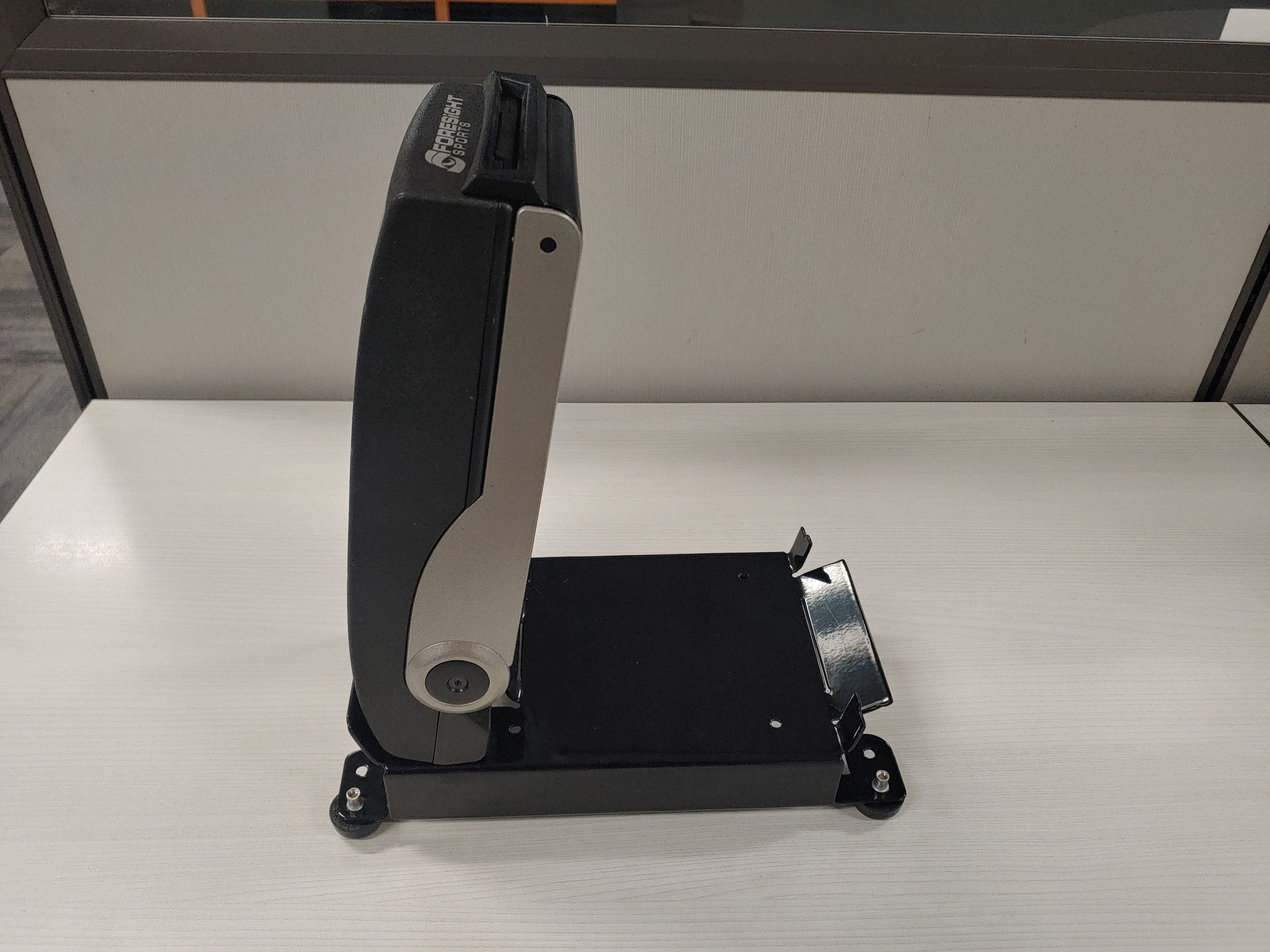

- GC2 should be mounted vertically between the two large metal tabs on the platform.
- If needed the tab over the opening can be bent forward to allow GC2 room to slide in.

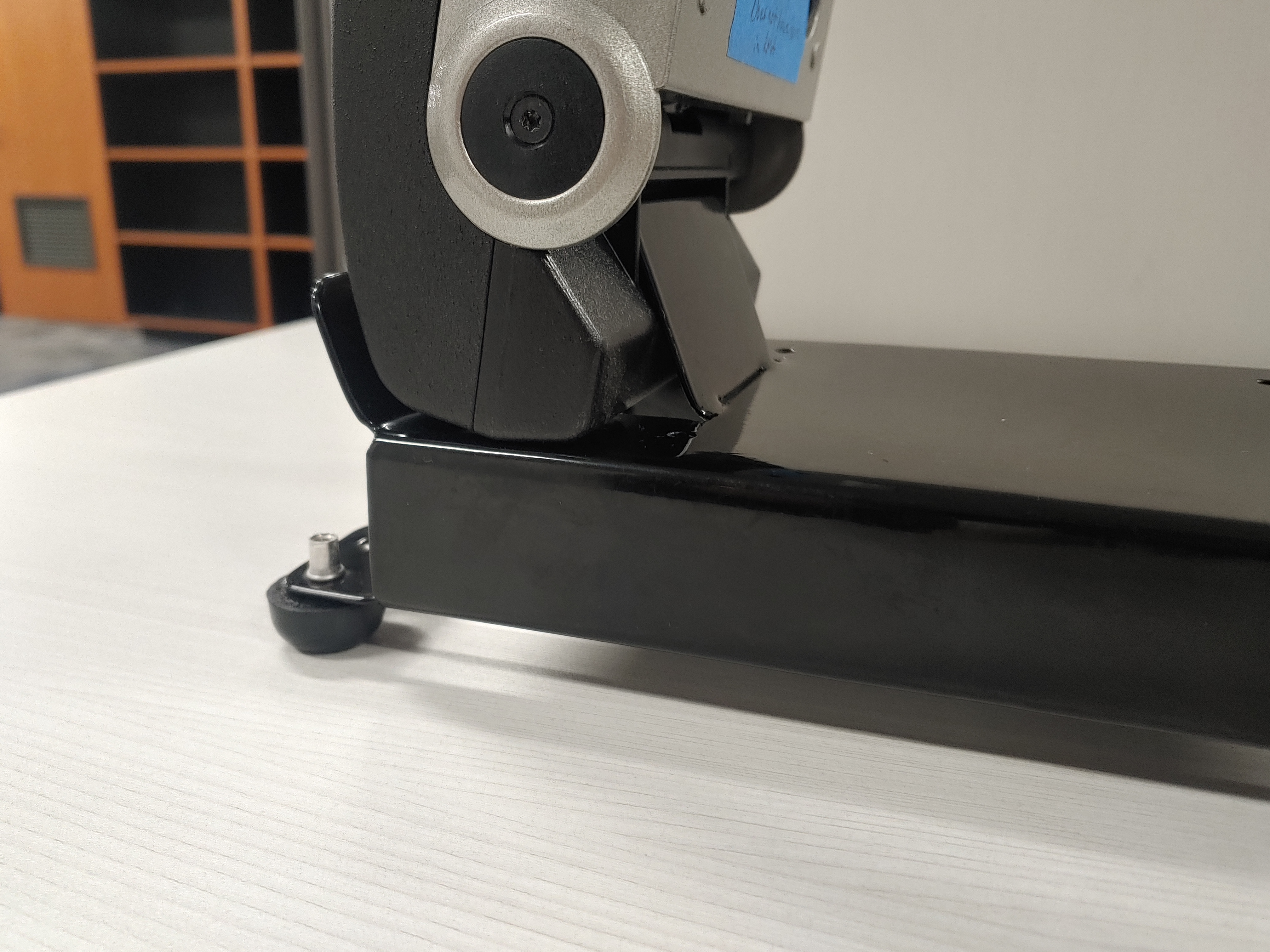

- GC2 should align as shown, metal tab should fit snugly in the groove on the bottom of the GC2.
- Unfold GC2 and line up latch with protruding tab, secure GC2 by fully inserting the tab through the GC2's latch.

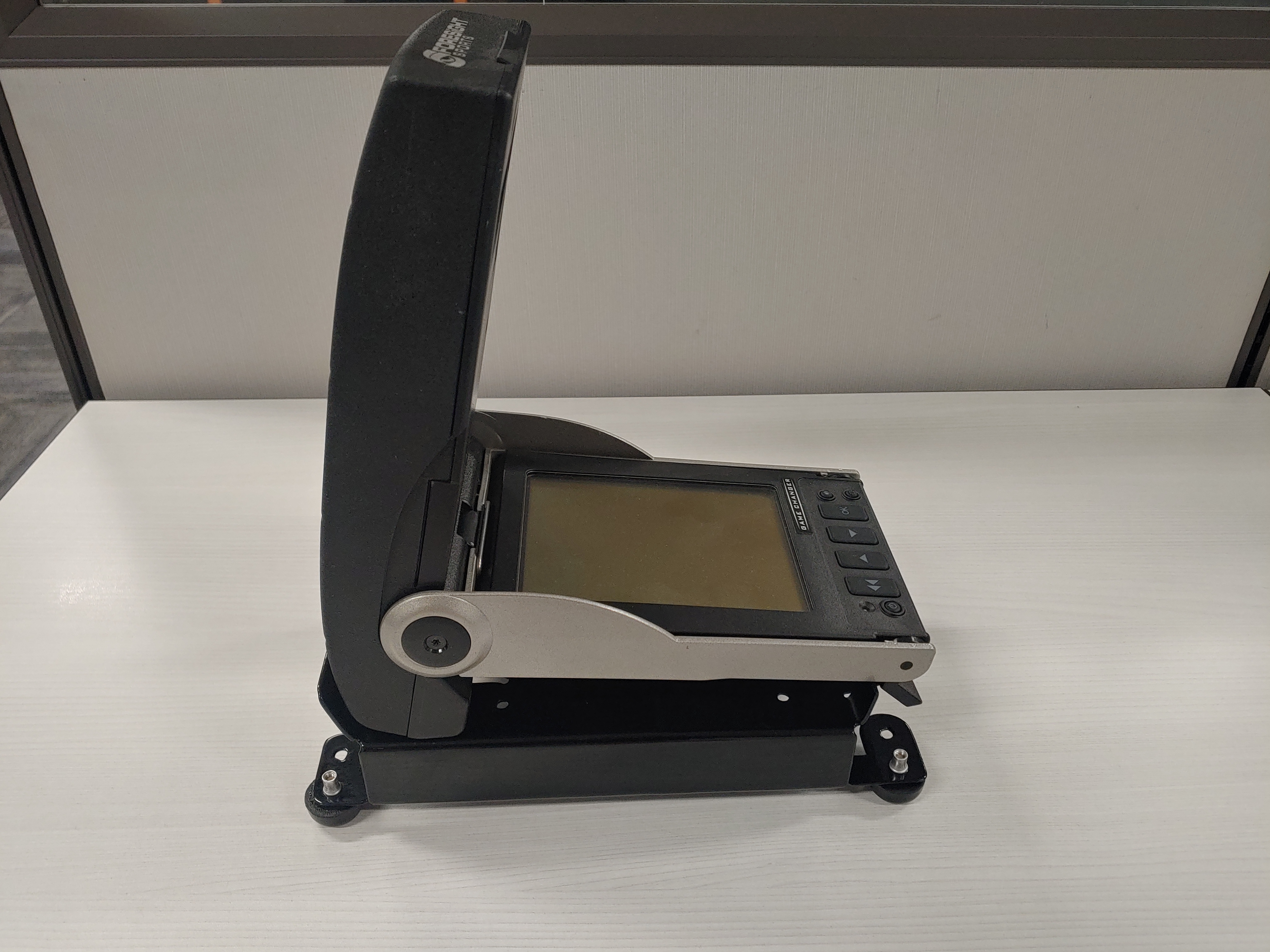

- Device should look as shown when in the correct position, you're all set.
