USING THE ALIGNMENT STICK WITH THE GC2

October 06, 2026 22:02

The GC2 includes a 3-segment retro-reflective alignment stick for setting your downrange target. Alignment can be adjusted up to ±10° from the default position.

NOTE: Target alignment resets to default every time the GC2 is powered off. Re-set your alignment at the start of each session as needed.

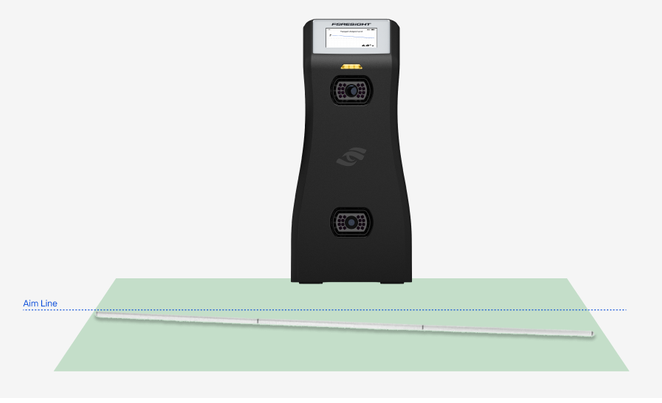

Front view showing how to set target alignment on the GC2. The 3-segment alignment stick lies flat on the ground in the hit zone in front of the GC2's cameras, running across the front of the device and pointed toward the intended target. The stick sits at a slight angle to a dotted line labeled "Aim Line," which shows the default alignment. The GC2 detects the stick, the Status Light turns yellow, and the display shows the Target Alignment screen with the adjusted angle. Remove the stick from the hit zone before hitting.
