Launch Pro Target Alignment Using The Alignment Stick

  • Updated
Follow

This covers how to use the Launch Pro’s Target Alignment feature with the alignment stick to set the device’s aim relative to a chosen target line. It also explains how alignment angles are displayed, adjusted, or reset, and when using the alignment stick is beneficial versus optional.

Activating Target Alignment

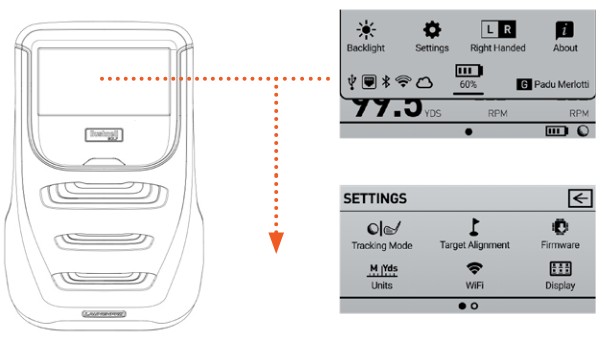

A diagram showing the Launch Pro device on the left connected by a dotted arrow to two interface screen captures on the right. The top screen shows the Quick Settings menu, where the user selects Settings. The bottom screen shows the Settings menu, where the user selects Target Alignment to access and configure target alignment on the device.

To activate target alignment, swipe down to access the QUICK SETTINGS screen. Select
SETTINGS, then go to TARGET ALIGNMENT.

Target Alignment: Using The Alignment Stick

Target alignment can be adjusted up to 10 degrees on the Launch Pro via the FSS
Alignment Stick. To adjust alignment, place the FSS Alignment Stick in the Launch Pro
hitting zone and align to your target. Once aligned, step away from the device to allow for
calibration.

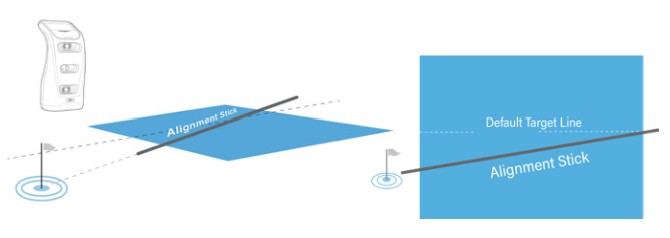

A two-part instructional diagram showing how to use an alignment stick for target alignment with a Launch Pro launch monitor when aiming toward the pin (flag). The first view shows a side or next-to perspective, with the launch monitor positioned behind the hitting area and an alignment stick placed on the ground pointing toward the target pin, representing the intended target line. The second view shows an overhead, top-down perspective, highlighting the default target line and the alignment stick aligned together toward the pin, demonstrating how the alignment stick should match the target line for accurate launch monitor alignment.

When calibration is complete, the new alignment angle will be shown on the touch display and the LED indicator light will turn solid orange. The new alignment angle will be shown on the touch display.

The Launch Pro display showing the Target Alignment screen after alignment is completed. The indicator light on the device changes color to confirm successful target alignment, while the screen displays the measured alignment offset of 1.2 degrees to the right and instructs the user to remove the alignment stick from view.

Alignment can be viewed and reset at any time. Swipe down to access the QUICK SETTINGS screen, then go to TARGET ALIGNMENT. Alignment is always reset when the unit is powered off.

The Launch Pro display showing the Settings menu, where the Target Alignment option is highlighted and can be selected to start or re-enter the target alignment setup process on the device.



FAQ


Q: Is my shot data still accurate if I dont use the alignment stick?

A: Short answer, yes. Your data is always accurate with the 0 degree alignment the device holds by default. However, if you are aiming at a specific target, then using the alignment stick will align your data with that target line.

Q: Can I use any alignment stick to set target alignment with the Launch Pro?

A: No, the reflective alignment stick provided with the device at purchase is specially made to work with the device. Other alignment sticks will not work correctly.

Q: How can I get a new reflective alignment stick?

A: You can purchase a new reflective alignment stick from www.bushnellgolf.com: Replacement Alignment Stick For Launch Pro
